FX Stage 1 Clutch Kit and Aluminum Flywheel and Hd Master Cylinder RSX Civic Si K20 5Spd

FX Racing Stage 1 clutch kit is an upgrade heavy-duty clutch set up for those who seeks streetable high performance clutch. It is a direct factory replacement parts thus no modifications are needed. The clutch kit includes only the highest grade components and it's ready for hot action on street and track. The premium organic friction material for high heat tolerance, quick recovery, good friction and long life. The heavy-duty sprung center unit boasts heat treated springs and retainer rivets for the maximum power and durability. The FX Racing pressure plate features special single diaphragm design to increase clamp load. It features induction hardened diaphragm, CNC machined castings, stronger drive straps and rivets. FX Racing pressure plate provides smooth and precise feel with easy modulation. All FX Racing pressure plate is load tested on a special testing tool for quality assurance.

FX Racing Aluminum Flywheels are made using the highest quality, most modern materials available. The flywheel itself is made from 6061 T6 billet aluminum. It is CNC machined at a constant surface speed for durability and finish. The friction surface is very special. FX Racing uses a 1050 high carbon, alloy steel. It is incredibly durable, allowing the user to use just about any clutch disc material available. The friction plate can be machined or replaced as needed. The plates are secured with 16-20 hardened aircraft quality screws with self locking nuts which prevent any warping. FX Racing uses hardened ring gears that are swarted to the flywheel with button head screws that are counter board between the flywheel and ring gear to prevent any possible slippage. The mass at the center of the flywheel is retained for strength, but the mass at the outside is eliminated for optimum performance.
<

• Ultra Light and weighs only 7.9 lbs
• Meets or exceeds SFI 1.1 specification. Design with replaceable plate delivers the highest quality and longest service life of any flywheel available
• A: Grade 8 Aircraft quality friction surface bolts
• B: Course ground surface to maintain coefficient of friction
• C: Stepped pin to maintain plate balance and placement
• D: Tig-welded safety tab to eliminate ring gear separation
• E: Heilicoil bolt holes to insure proper torque value and eliminate thread damage

This is a brand new FX RACING Heavy-Duty OE replacement clutch master cylinder unit for 2002-2006 Acura RSX Base, L 2.0L K20 5 Speed; 2002-2005 Honda Civic Si 2.0L K20 5 Speed. The hydraulic clutch master cylinder used on these cars has a feedback plate which is known to fail when installing any performance clutch pressure plate that has a higher clamp load over the factory clutch kit. FX Racing Heavy-Duty hydraulic clutch master cylinder is a direct replacement designed without the feedback plate which can be installed without any modifications. Our original equipment technology and know-how is applied to design and engineer hydraulic components. Each part is manufactured vehicle specific, ensuring product quality and reliability.

The advantages over other brand hydraulics:
• Precision honing of hydraulic cylinders are monitored under OE quality control standards.
• Anodizing plating of cylinder bodies strengthens surface, ensuring smooth operation of the piston, and resists corrosion.
• Heat resistant and extended life Ethylene Propylene Rubber (EPDM) seals prevent leakage.
• Quick response design reacts to driver's clutch and brake pedal input.

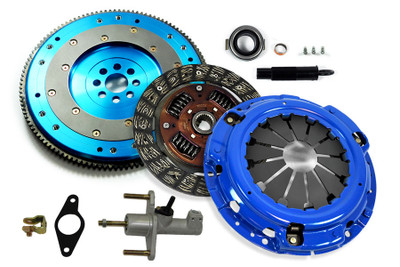

This complete clutch kit, master cylinder and flywheel package includes:
• FX Racing Ultra Light Aluminum flywheel
• FX Racing HD Hydraulic Clutch Master Cylinder
• FX Racing Stage 1 Heavy-Duty Pressure Plate
• FX Racing Stage 1 Full Face Organic Street Disc (215 mm, 24 spline)
• Release Bearing
• Alignment Tool
• Installation Guide

Vehicle Application:

2002 - 2006 Acura RSX Base Coupe, L Coupe (2.0L 4cyl DOHC K20, 5 speed)

2002 - 2005 Honda Civic Si Hatchback 3-Door (2.0L 4cyl DOHC K20, 5 speed)
