FX Racing Kevlar Clutch Kit and Prolite Aluminum Flywheel 01-06 BMW M3 E46 3.2L S54

FX Racing Kevlar clutch kit is a direct factory replacement clutch kit and it's designed for the ultimate street enthusiast or weekend racer. FX Racing Kevlar clutch kit includes only the highest grade clutch components from the world's leading high performance clutch manufacturers. The steel backed segmented Kevlar disc features high-coefficient pads that are resistant to heat and ensures the longer lasting life. The heavy-duty sprung center unit boasts heat treated springs and retainer rivets for the maximum power and durability. The FX Racing pressure plate features special single diaphragm design to increase clamp load. It features induction hardened diaphragm, CNC machined castings, stronger drive straps and rivets. FX Racing pressure plate provides smooth and precise feel with easy modulation. All FX Racing pressure plate is load tested on a special testing tool for quality assurance.

FX Racing Aluminum Flywheels are made using the highest quality, most modern materials available. The flywheel itself is made from 6061 T6 billet aluminum. It is CNC machined at a constant surface speed for durability and finish. The friction surface is made from high carbon alloy steel. It is incredibly durable allowing the user to use just about any clutch disc material available from organic to Kevlar and even sintered iron. The friction plate can be machined or replaced as needed. The mass at the center of the flywheel is retained for strength, but the mass at the outside is eliminated for optimum performance. ul>

• Ultra light and weighs only 10.6 lbs (stock flywheel weighs 25 lbs)
• Flywheel comes with 8 flywheel mounting bolts.
• Meets or exceeds SFI 1.1 specification. Design with replaceable plate delivers the highest quality and longest service life of any flywheel available
• A: Aircraft grade 8 quality friction surface bolts
• B: Course ground surface to maintain coefficient of friction
• C: Stepped pin to maintain plate balance and placement
• D: Tig-welded safety tab to eliminate ring gear separation
• E: Heilicoil bolt holes to insure proper torque value and eliminate thread damage
• ***NOTE: Replacement of stock dual mass flywheel may cause added gear noise***

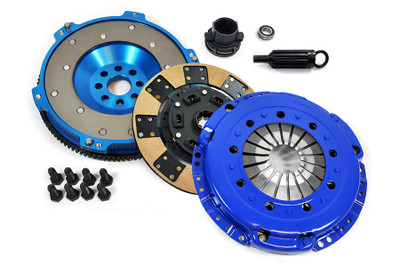

This complete clutch kit and flywheel package includes:
• FX Racing Lightweight Aluminum Racing Flywheel
• FX Racing Heavy-Duty Pressure Plate
• FX Racing Segmented Kevlar Disc (9-1/2", 10 spline)
• Release Bearing
• Pilot Bearing
• Alignment Tool
• Installation Guide

Vehicle Application:
2001 - 2006 BMW M3 (E46, 3.2L S54; except SMG model)
