Add to Wish List

Click the button below to add the FX STAGE 3 CLUTCH SET+CHROMOLY FLYWHEEL for 14-18 COROLLA iM SCION iM 1.8L to your wish list.

FX STAGE 3 CLUTCH SET+CHROMOLY FLYWHEEL for 14-18 COROLLA iM SCION iM 1.8L

  • Image 1
Price:
$299.00
SKU:
FX-56133R3-SSA; 16121FC-MV #26 GFW
Brand:
Condition:
New
Gift Wrapping:
Options available
Quantity:


Product Description

FX Racing Stage 3 clutch kit is a direct factory replacement clutch kit and it's designed for those who seek the ultimate in clutch performance and reliability. FX Racing clutch kit includes only the highest grade clutch components from the world's leading racing clutch manufacturers. The 6-puck copper ceramic (also known as MIBA) disc features 12 high-coefficient friction pads that are resistant to slippage and ensures long lasting life. The heavy-duty sprung center unit boasts heat treated springs and retainer rivets for the maximum power and durability. The FX Racing pressure plate features special single diaphragm design to increase clamp load. It features induction hardened diaphragm, CNC machined castings, stronger drive straps and rivets. FX Racing pressure plate provides smooth and precise feel with easy modulation. All FX Racing pressure plate is load tested on a special testing tool for quality assurance.

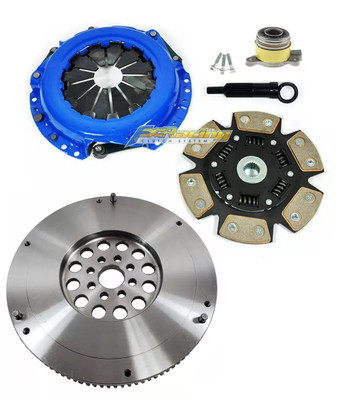

This complete clutch kit includes:
FX Racing 4140 Chromoly Lightweight Flywheel (13.5 lbs)
FX Racing Heavy-Duty Pressure Plate
FX Racing Stage 3 'MIBA' 6-Puck Copper Ceramic Sprung Disc (212mm, 21 spline)
Slave Cylinder with Release Bearing
Alignment Tool
Basic Installation Guide
Horsepower Rating: 372 HP / Torque Capacity: 349 ft/lbs

Vehicle Application

Fits 2014 - 2018 Toyota Corolla (1.8L DOHC 2ZR-FAE)
Fits 2017 - 2018 Toyota Corolla iM (1.8L DOHC 2ZR-FAE)
Fits 2016 - 2016 Scion iM (1.8L DOHC 2ZR-FAE)

Other Details

Clutch Disc Style:
6 Puck Spring Hub
Warranty:
1 Year
Fitment Type:
Direct Replacement
Manufacturer Part Number:
FX-56133R3-SSA
Transmission Type:
Manual
Pressure Plate Type:
Heavy Duty Push Type Diaphragm
Brand:
FX Racing
Type:
Clutch Kit
Interchange Part Number:
EXEDY KTY18 16-080, TYK1522 16121ST 16121FC LFW388, BRG0222 LSC648 CHB095
