FX Stage 2 Rigid Clutch Kit & Forged Flywheel 99-03 BMW 323 325 328 330 525 528 Z3

  • Image 1
Price:
$489.00
SKU:
FX-04120R2-SS; 04120FX-HT #34
Brand:
Condition:
New
Gift Wrapping:
Options available
Quantity:


Product Description

FX Racing Stage 2 clutch kit is a step up from our Stage 1 clutch kit. This is a versatile set up for the street and on the track. It provides a smooth engagement yet it can holds 50%+ more power over stock clutches. This is a direct factory replacement clutch kit thus no modifications are needed and the clutch kit includes only the highest grade components from world's leading high performance clutch manufacturer. The Carbonized Kevlar friction material is used on all Stage 2 clutch kit to have higher burst strength and heat tolerance. The heavy-duty solid center with chromoly spline hub and retainer rivets to increase strength and reliability. The FX Racing pressure plate features special single diaphragm design to increase clamp load. It features induction hardened diaphragm, CNC machined castings, stronger drive straps and rivets. FX Racing pressure plate provides smooth and precise feel with easy modulation. All FX Racing pressure plate is load tested on a special testing tool for quality assurance.

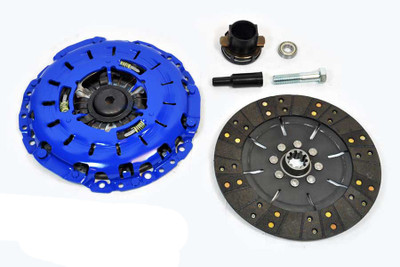

This complete clutch kit includes:

  • ** Sachs/Self-Adjusting Style that fits original DMF **
  • FX Racing Heavy-Duty Self-Adjusting Pressure Plate
  • FX Racing Carbon Kevlar Rigid Disc (9-7/16" , 10 spline)
  • Release Bearing
  • Pilot Bearing
  • 2 pc. Alignment Tool
  • Installation Guide

Horsepower Rating: 439 HP / Torque Capacity: 387 ft/lbs

FX Racing Lightweight Chromoly Flywheels are made from 4140 one-piece billet chromoly steel. They are specifically designed to reduce weight and inertia for better engine response. Most incorporate special design features to enhance the air flow to improve the cooling of the clutch. The ring gear teeth are milled onto the flywheel unlike an aluminum flywheel where the ring gear is pressed onto the flywheel which has the possibility of separating from the flywheel. All FX Racing Chromoly flywheels have passed engineering tests to 12,000 rpm.

  • Ultra heavy-duty and weighs only 15.85 lbs (stock flywheel weighs 24 lbs)
  • Includes 8 ea. flywheel mounting bolts
  • Meets or exceeds SFI 1.1 specification
  • Made from 4140 forged chromoly steel (2X stronger than billet steel)
  • FX Racing Lightweight Chromoly flywheels incorporate special design features to enhance the airflow for improved clutch cooling
  • CAD designed, CNC machined and computer balanced
  • NOTE: Replacement of dual mass flywheel may cause added gear noise

Note: The clutch kit and flywheel must be used together as a conversion kit.

Vehicle Application



1999 - 2000 BMW 323i 4 door sedan (E46, 2.5L 6cyl)
2000 - 2000 BMW 323ci 2 door coupe (E46, 2.5L 6cyl)
2001 - 2003 BMW 325i 4 door sedan (E46, 2.5L 6cyl)
2001 - 2003 BMW 325ci 2 door coupe (E46, 2.5L 6cyl)
2001 - 2003 BMW 325xi 4WD 4 door sedan (E46, 2.5L 6cyl)
1999 - 2000 BMW 328i 4 door sedan (E46, 2.8L 6cyl)
2000 - 2000 BMW 328ci 2 door coupe (E46, 2.8L 6cyl)
2001 - March/2003 BMW 330i 4 door sedan (E46, 3.0L 6cyl; fits 5 speed only)
2001 - March/2003 BMW 330ci 2 door coupe (E46, 3.0L 6cyl; fits 5 speed only)
2001 - 2002 BMW 525i (E39, 2.5L 6cyl)
1999 - 2000 BMW 528i (E39, 2.8L 6cyl)
2001 - March/2003 BMW 530i (E39, 3.0L 6cyl; fits 5 speed only)
1999 - 2002 BMW Z3 (E36, 2.5L DOHC 6cyl)
2001 - 2002 BMW Z3 (E36, 3.0L DOHC 6cyl)
