Click the button below to add the FX STAGE 1 CLUTCH KIT+CHROMOLY FLYWHEEL for 09-13 TOYOTA COROLLA MATRIX VIBE to your wish list.

FX STAGE 1 CLUTCH KIT+CHROMOLY FLYWHEEL for 09-13 TOYOTA COROLLA MATRIX VIBE

  • Image 1
Price:
$254.00
SKU:
FX-56033R0-SSA; 16121FC-MV #26 GFW
Brand:
Condition:
New
Gift Wrapping:
Options available
Quantity:


Product Description

FX Racing Stage 1 clutch kit is an upgrade heavy-duty clutch set up for those who seeks streetable high performance clutch. It is a direct factory replacement parts thus no modifications are needed. The clutch kit includes only the highest grade components and it's ready for hot action on street and track. The premium organic friction material for high heat tolerance, quick recovery, good friction and long life. The solid center unit boasts heat treated spline hub and retainer rivets for the maximum power and durability. The FX Racing pressure plate features special single diaphragm design to increase clamp load. It features induction hardened diaphragm, CNC machined castings, stronger drive straps and rivets. FX Racing pressure plate provides smooth and precise feel with easy modulation. All FX Racing pressure plate is load tested on a special testing tool for quality assurance.

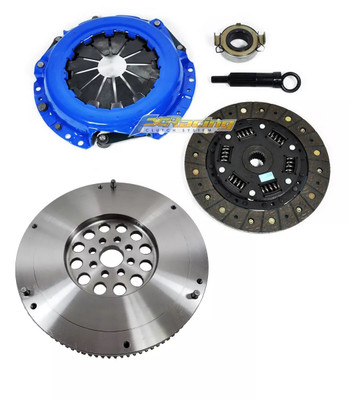

FX Racing Premium Clutch kit includes:
FX Racing 4140 Chromoly Lightweight Flywheel (13.5 lbs)
FX Racing Heavy-Duty Pressure Plate
FX Racing Stage 1 HD Organic Street Disc (212mm, 21 spline)
FX Racing HD Release Bearing
Alignment Tool
Basic Installation Guide
Horsepower Rating: 210 HP / Torque Capacity: 203 ft/lbs

Vehicle Application

Fits 2009-2010 Pontiac Vibe (1.8L DOHC 4cyl 5-Speed)
Fits 2009-2013 Toyota Corolla (1.8L DOHC 4cyl 5-Speed)
Fits 2009-2013 Toyota Matrix (1.8L DOHC 4cyl 5-Speed)

Other Details

Clutch Disc Style:
Full Face Sprung Hub
OE Spec or Performance/Custom:
Performance/Custom
Warranty:
1 Year
Fitment Type:
Direct Replacement
Manufacturer Part Number:
FX-56033R0-SSA
Transmission Type:
Manual
Pressure Plate Type:
Heavy Duty Push Type Diaphragm
Brand:
FX Racing
Type:
Clutch Kit
Interchange Part Number:
TYK1518 92770 K70601-01 16113, 16121ST
